Produk Panel Module LED Indoor

P3 Indoor

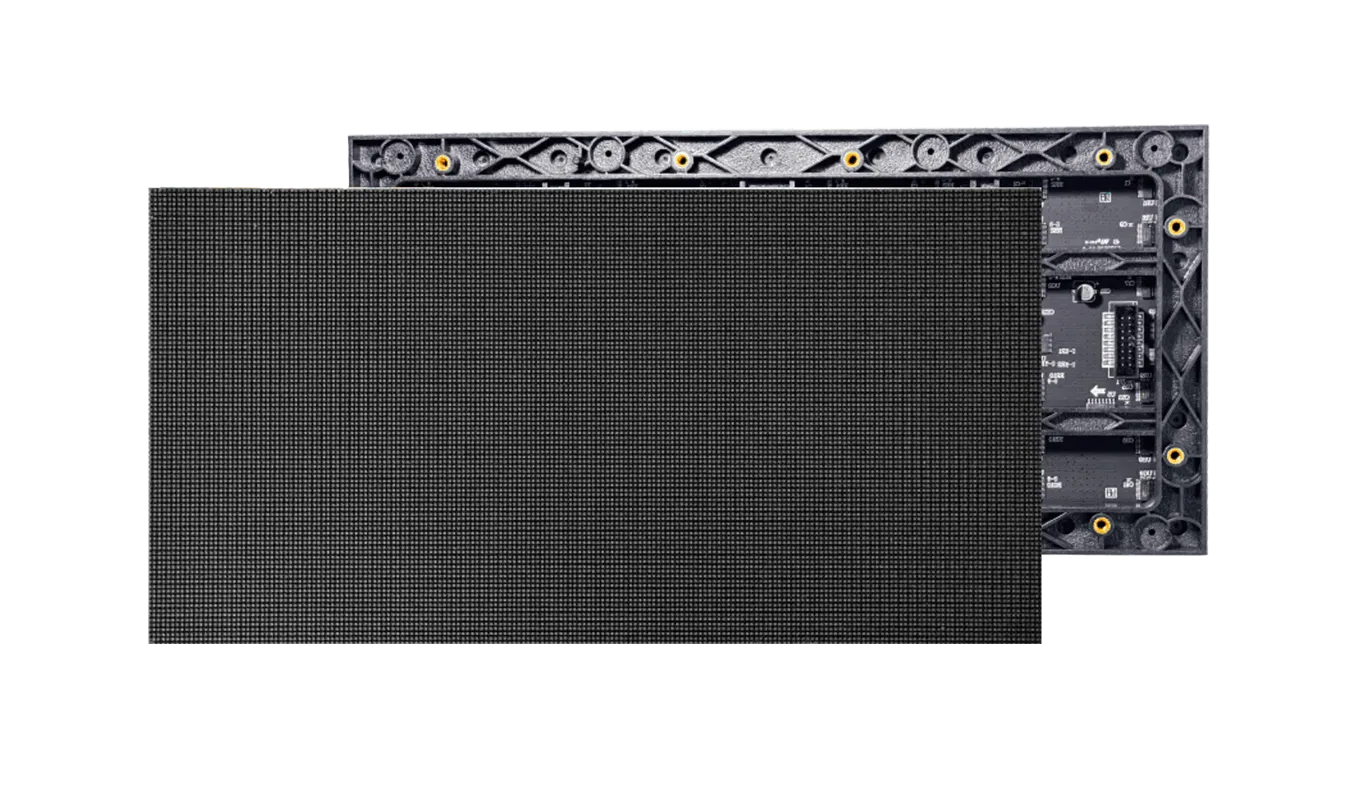

Module Videotron Indoor P1.25

MODULE
  • LED Type SMD1010
  • Pixel Pitch 1.25mm
  • Module Resolutio（n W×H） 256*128=32768Pixels
  • HUB320
  • Module Dimension 320mm×160mm×16.6mm
  • Module Weight 0.48± 0.02kg
PERFORMA
  • Frame Changing Frequency 60Hz
  • Drive Mode Constant Current Drive/ 64 Scan
  • Refresh Rate 3840Hz
  • Processing Depth 12~14 Bit
  • Video Support 2K HD, 4K UHD
P3 Indoor

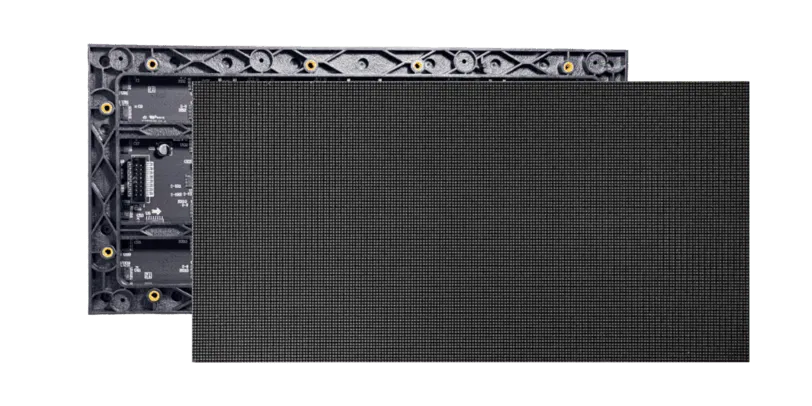

Module Videotron Indoor P1.839

MODULE
  • LED Type SMD1515
  • Pixel Pitch 1.839mm
  • Module Resolution (W×H） 174×87=15138 Pixels
  • HUB HUB320
  • Module Dimension 320mm×160mm×16.6mm
  • Module Weight 0.46± 0.02kg
PERFORMA
  • Frame Changing Frequency 60Hz
  • Drive Mode Constant Current Drive / 58 Scan
  • Refresh Rate 3840Hz
  • Processing Depth 12~14 Bit
  • Video Support 2K HD, 4K UHD
P3 Indoor

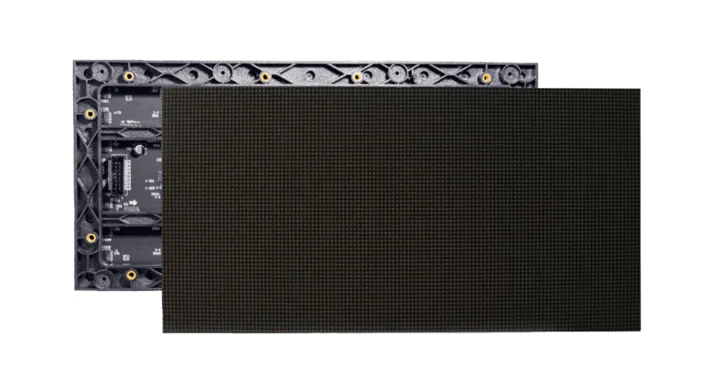

Module Videotron Indoor P2

MODULE
  • LED Type SMD1515
  • Pixel Pitch 2.0mm
  • Module Resolution (W×H） 160×80=12800 Pixels
  • HUB HUB75
  • Module Dimension 320mm×160mm×16.6mm
  • Module Weight 0.45±0.02kg
P3 Indoor

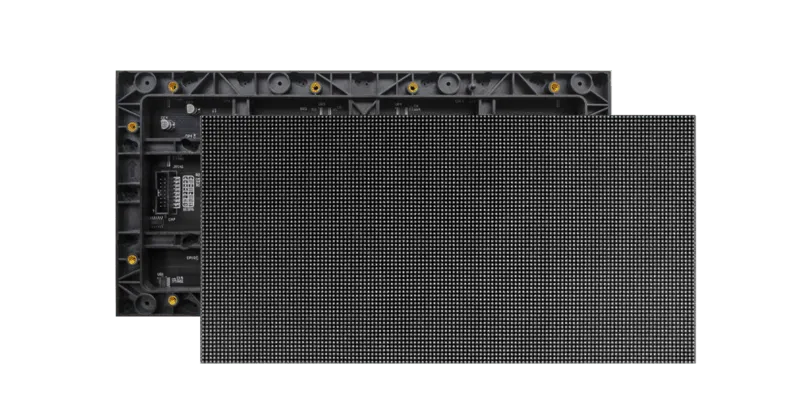

Module Videotron Indoor P2.5

MODULE
  • LED Type SMD2121
  • Pixel Pitch 2.5mm
  • Module Resolution (W×H） 128×64=8192 Pixels
  • HUB75
  • Module Dimension 320mm×160mm×16.6mm
  • Module Weight 0.46±0.02kg
PERFORMA
  • Frame Changing Frequency 60Hz
  • Drive Mode Constant Current Drive/ 32 Scan
  • Refresh Rate 1920/3840Hz
  • Processing Depth 12~14 Bit
  • Video Support 2K HD, 4K UHD
P3.076 Indoor

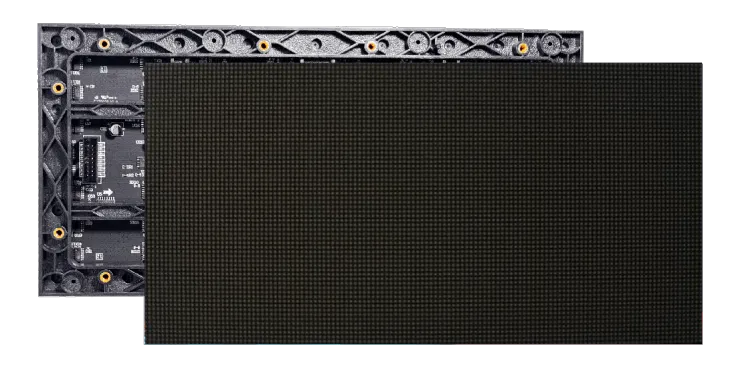

Module Videotron Indoor P3.076

MODULE
  • LED Type SMD2121
  • Pixel Pitch 3.076mm
  • Module Resolution (W×H） 104×52=5408 Pixels
  • HUB75
  • Module Dimension 320mm×160mm×16.6mm
  • Module Weight 0.35±0.02kg
PERFORMA
  • Frame Changing Frequency 60Hz
  • Drive Mode Constant Current Drive/ 26 Scan
  • Refresh Rate 1920Hz/3840Hz
  • Processing Depth 12~14 Bit
  • Video Support 2K HD, 4K UHD
P4 Indoor

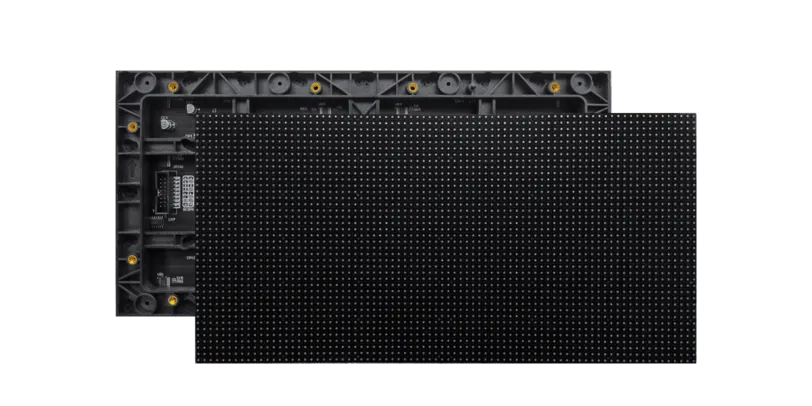

Module Videotron Indoor P4

MODULE
  • LED Type SMD2121
  • Pixel Pitch 4.0mm
  • Module Resolution (W×H） 80×40=3200 Pixels
  • HUB75
  • Module Dimension 320mm×160mm×16.6mm
  • Module Weight 0.46±0.02kg
PERFORMA
  • Frame Changing Frequency 60Hz
  • Drive Mode Constant Current Drive/ 20 Scan
  • Refresh Rate 1920Hz/3840Hz
  • Processing Depth 12~14 Bit
  • Video Support 2K HD, 4K UHD
