OUTPUT

• Loading capacity up to 1,300,000 pixels
  -Maximum width: 4096 pixels
  -Maximum height: 4096 pixels
• 2x Gigabit Ethernet ports, These two ports serve as primary by default. Users can also set one as primary and the other as backup.
• 1x Stereo audio connector, The audio sample rate of the internal source is fixed at 48 kHz. The audio sample rate of the external source supports 32 kHz, 44.1 kHz, or 48 kHz. If NovaStar’s multifunction card is used for audio output, audio with a sample rate of 48 kHz is required.
• 1x HDMI 1.4 connector, Maximum output: 1080p@60Hz, support for HDMI loop Input

INPUT

• 1x HDMI 1.4 connector, In synchronous mode, video sources input from this connector can be scaled to fit the entire screen automatically.
• 2x sensor connectors, Connect to brightness sensors or temperature and humidity sensors.

CONTROL

• 1x USB 3.0 (Type A) port, Allows for playback of content imported from a USB drive and firmware upgrade over USB.
• 1x USB (Type B) port, Reserved.
• 1x Gigabit Ethernet port, Connects to a LAN, public network, or computer for content publishing and screen control.

PERFORMANCE

• Powerful processing capacity
  − Quad-core ARM A55 processor @1.8 GHz
  − Support for H.264/H.265 4K@60Hz video decoding
  − 1 GB of onboard RAM
  − 16 GB of internal storage
• Flawless playback 1x 4K video playback or 2x 1080p video playback

Output

• Loading capacity up to 1,300,000 pixels
  - Maximum width: 4096 pixels
  - Maximum height: 4096 pixels
• 2x Gigabit Ethernet ports, These two ports serve as primary by default. Users can also set one as primary and the other as backup.
• 1x Stereo audio connector, The audio sample rate of the internal source is fixed at 48 kHz. The audio sample rate of the external source supports 32 kHz, 44.1 kHz, or 48 kHz. If NovaStar’s multifunction card is used for audio output, audio with a sample rate of 48 kHz is required.
• 1x HDMI 1.4 connector, Maximum output: 1080p@60Hz, support for HDMI loop Input

INPUT

• 1x HDMI 1.4 connector In synchronous mode, video sources input from this connector can be scaled to fit the entire screen automatically.
• 2x sensor connectors Connect to brightness sensors or temperature and humidity sensors.

CONTROL

• 1x USB 3.0 (Type A) port Allows for playback of content imported from a USB drive and firmware upgrade over USB.
• 1x USB (Type B) port Reserved.
• 1x Gigabit Ethernet port Connects to a LAN, public network, or computer for content publishing and screen control.

PERFORMANCE

• Powerful processing capacity
  − Quad-core ARM A55 processor @1.8 GHz
  − Support for H.264/H.265 4K@60Hz video decoding

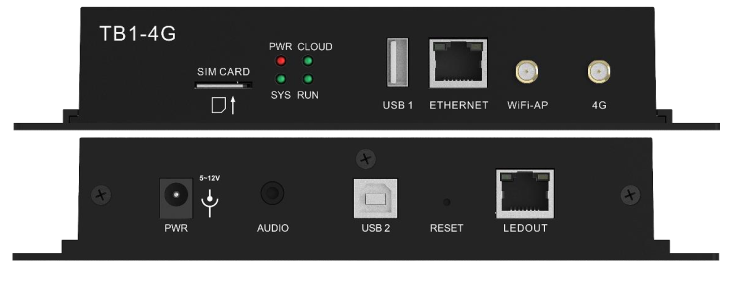

FITUR PRODUK

• Loading capacity up to 650,000 pixels with a maximum width of 1920 pixels and a maximum height of 1080 pixels
• 1x Gigabit Ethernet output
• 1x Stereo audio output
• 1x USB 2.0, capable of playing solutions imported from a USB drive
• 1x USB Type B, capable of connecting to a PC Connecting this port to a PC allows users to configure screens, publish solutions, etc. with NovaLCT and ViPlex Express.
• Powerful processing capacity
• − 4 core 1.2 GHz processor
• − Hardware decoding of 1080P videos
• − 1 GB of RAM
• − 32 GB of internal storage (28 GB available) All-round control plans
• − Solution publishing and screen control via user terminal devices such as PC, mobile phones and tablets
• − Remote cluster solution publishing and screen control
• − Remote cluster screen status monitoring Built-in Wi-Fi AP User terminal devices can connect to the built-in Wi-Fi hotspot of the TB1-4G (Optional 4G). The default SSID is “AP+Last 8 digits of SN” and the default password is “12345678”.
• Support for 4G modules
• − The TB1-4G (Optional 4G) ships without a 4G module. Users have to purchase 4G modules separately if needed.
• − Wired network is prior to 4G network. When both networks are available, the T1- 4G (Optional 4G) will choose signals automatically according to the priority.

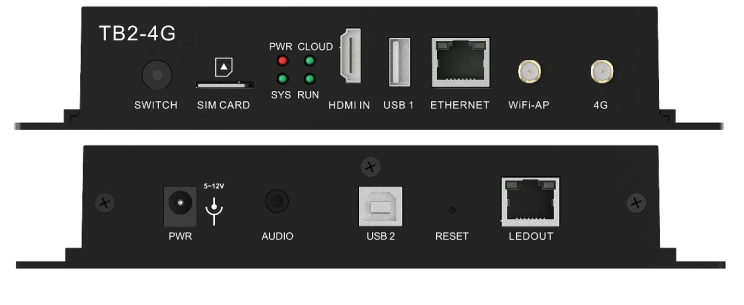

OUTPUT

• Loading capacity up to 650,000 pixels with a maximum width of 1920 pixels and a maximum height of 1080 pixels
• 1x Gigabit Ethernet output
• 1x Stereo audio output
• 1x HDMI 1.3 input, accepting HDMI input and allowing content to auto fit to screen
• 1x USB 2.0, capable of playing solutions imported from a USB drive
• 1x USB Type B, capable of connecting to a PC Connecting this port to a PC allows users to configure screens, publish solutions, etc. with NovaLCT and ViPlex Express.
• Powerful processing capacity
  − 4 core 1.2 GHz processor
  − Hardware decoding of 1080P videos
  − 1 GB of RAM
  − 32 GB of internal storage (28 GB available)
• All-round control plans
  − Solution publishing and screen control via user terminal devices such as PC, mobile phones and tablets
  − Remote cluster solution publishing and screen control
  − Remote cluster screen status monitoring
• Synchronous and asynchronous modes
  − When the internal video source is used, the TB2-4G (Optional 4G) works in asynchronous mode.
  − When the HDMI video source is used, the TB2-4G (Optional 4G) works insynchronous mode.
• Built-in Wi-Fi AP User terminal devices can connect to the built-in Wi-Fi hotspot of the TB2-4G (Optional 4G). The default SSID is “AP+Last 8 digits of SN” and the default password is “12345678”.
• Support for 4G modules
  − The TB2-4G (Optional 4G) ships without a 4G module. Users have to purchase 4G modules separately if needed.
  − Wired network is prior to 4G network. When both of the networks are available, the TB2-4G (Optional 4G) will choose signals automatically according to the priority.
